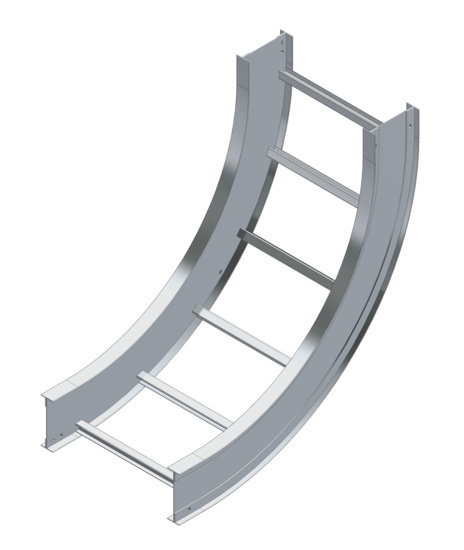

Image of ladder tray inside elbow vertical fittings.

Image of ladder tray cross vertical fittings.

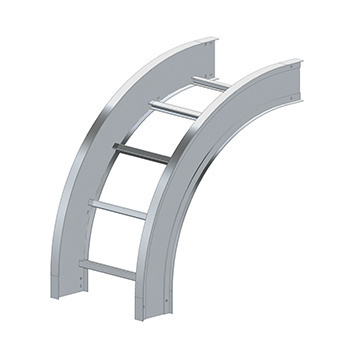

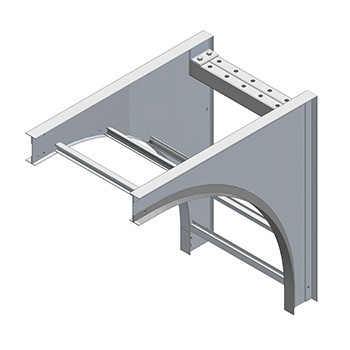

Itray Aluminum Ladder Tray Vertical Fittings

Itray-Vert-Fittings Cablofil

The ITray Aluminum Ladder Tray is engineered for optimal performance in industrial installations, particularly those involving large diameter cables and long span situations. Its innovative aluminum I-beam design minimizes the total tray width while ensuring a smooth transition between straight sections and fittings.

filter series: Please select to continue

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Aluminum construction provides a lightweight, high-strength, corrosion resistant offering well suited for almost any application.
Tray construction and markings are per the latest edition of NEMA Standards Publication BI 50015 (Previously VE1), CSA C22.2 No. 126
Itray is classified as an equipment grounding conductor per NEC 392.60.
Tray heights are available in 4'', 5'', 6'' and 7''.

Specifications

General Info

Type	Vertical Fittings
Material	Aluminum
Application Sector	Commercial, Industrial
Product Line	Cablofil
