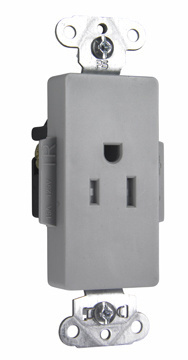

Tamper-Resistant Heavy Duty Decorator Spec Grade Single Receptacle, Back and Side Wire, 15A, 125V, Gray

Tamper-Resistant Heavy-Duty Decorator Spec Grade Single Receptacle, Back and Side-Wire, 15A, 125A

Color Gray

Application Sector Commercial

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Dual mechanical shutter system to help prevent insertion of foreign objects.
Auto-ground clip assures positive ground.
Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
Backed-out tri-drive brass terminal screws for faster installation.
Internal screw-pressure-plate back and side wire capability.
Two back wire holes for additional wiring flexibility.
Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
.032 inch thick brass triple-wipe power contacts.
Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact

General Info

Color	Gray
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Single Piece Plated Steel Mounting Strap
Wall Plate Included	No
Number of Receptacles	1
Outlet Type	Straight Blade, Tamper-Resistant
Warranty Type	1-Year Limited Warranty
Standard	UL498, CSA C22.2 No. 42
UPC Number	785007004946

Dimensions

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Technical Information

Amperage	15 A
Connection Location	Back and Side
Wire Connection Type	Internal Pressure Plates, Screw Terminals
Dielectric Strength	Withstands 2000V minimum
Environmental Conditions	Flammability: UL94 V2
Indoor/Outdoor	Indoor
Is Tamper-Resistant	Yes
NEMA Configuration Code	5-15R
Number of Poles	Double Pole
Number of Wires	3
Operating Temperature	-40°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-40 °C
Voltage	125.0 V
Wire Size	14 - 10 AWG
