Wire Mesh Cable Tray Underfloor Mounting
Wire Mesh Underfloor Supports
Cablofil
Series
A series reflects connected component products for individual purchase.
Wire Mesh underfloor supports secure trays beneath raised floors, providing stable, low-profile mounting and organized cable routing. Wire mesh tray underfloor supports provide stable, low-profile mounting solutions that secure trays beneath raised floors, enabling organized cable routing, efficient space utilization, and easy installation with compatible hardware for flexible configurations.
Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.
Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Multiple Underfloor Support Methods: Choose from floor-deck-mounted support stands, post-mounted UFC clamps and EDF Rail systems to accommodate different raised-floor structures and pathway layouts.
- Independent Floor-Deck Mounting: Under Floor Support Stands attach directly to the floor deck through slotted mounting holes and support the tray independently of the raised-floor system.
- Hardware-Free FAS Tray Attachment: Patented locking tabs on support stands and compatible FAS brackets secure the wire mesh tray without separate nuts, bolts or clamps.

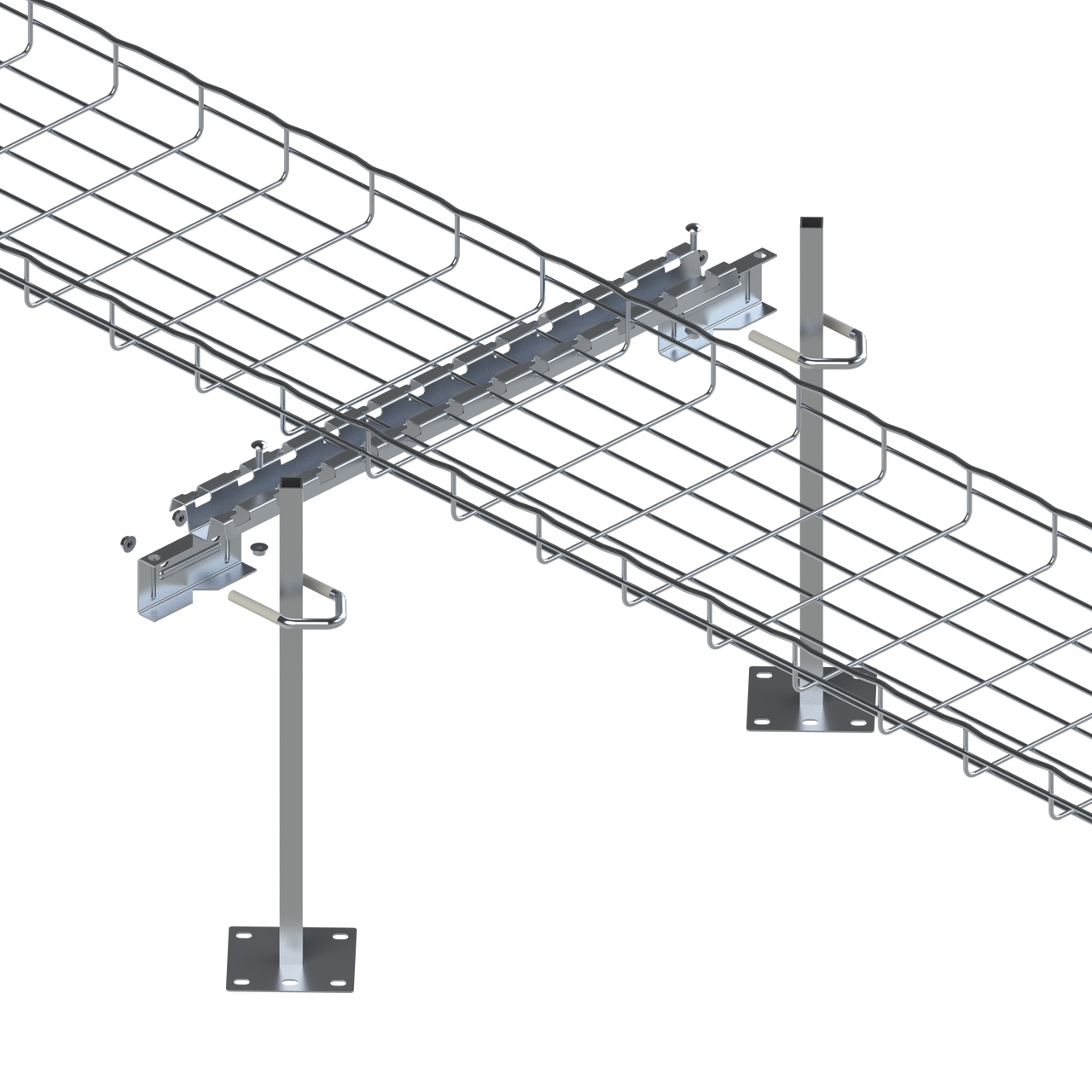

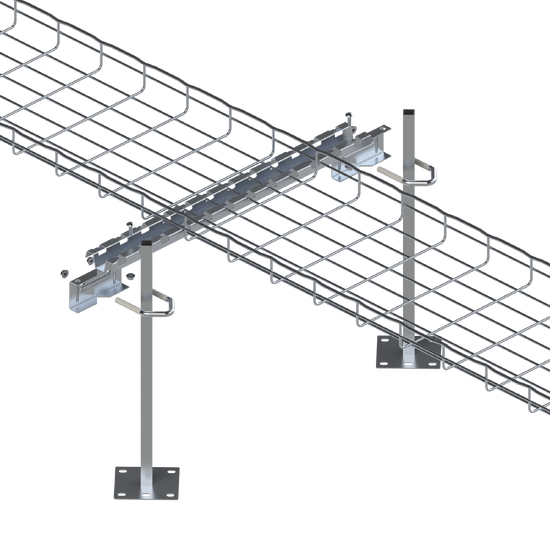

- Round and Square Post Compatibility: UFC Clamps use a U-bolt to attach FAS L Brackets to round or square raised-floor posts, with a reversible support plate for different post orientations.
- Multiple Height and Width Options: Underfloor supports are available in configurations ranging from low-profile 2-inch stands to 12-inch-high models, with options sized for tray widths up to 20 inches.
Specifications
General Info
| Type | Supports | ||
| Application Sector | Data Center | ||
| Product Line | Cablofil |
Additional Information
| Product Environmental Profile | Yes |
Resources
Cutsheet
Installation Instructions
Supporting Document
Catalog
Product Environmental Profile
White Papers & Tech Bulletins
