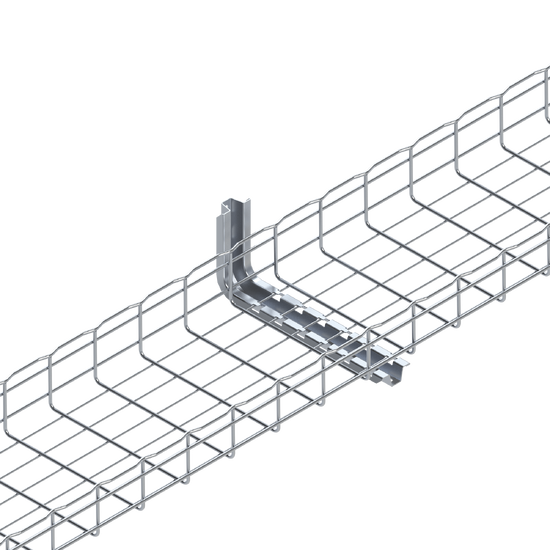

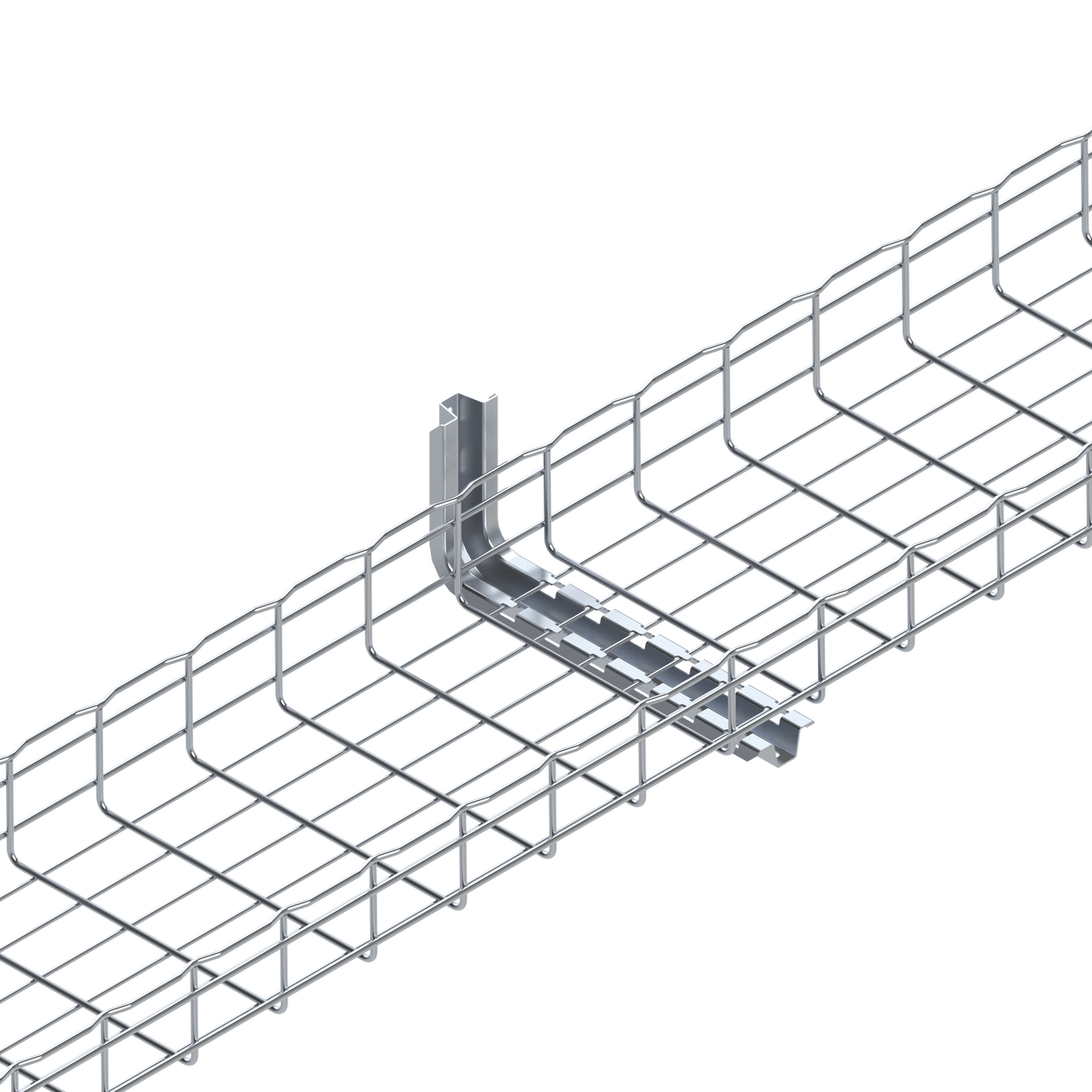

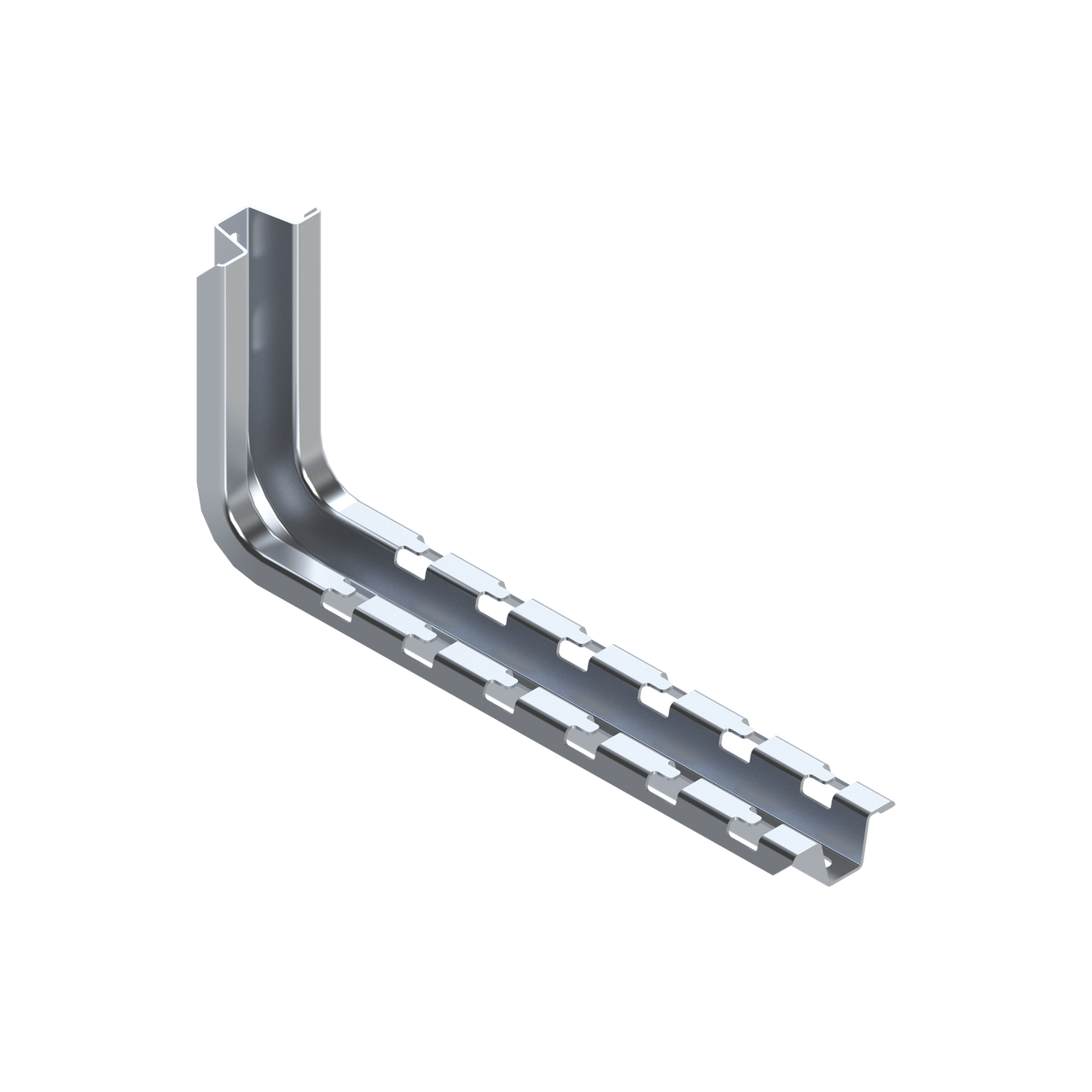

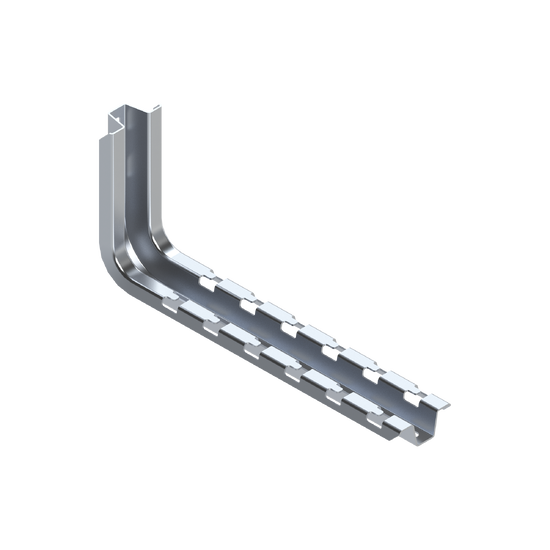

Wire Mesh L-Shaped Bracket
These bracket mounts trays to walls with fast, secure installation and strong support for stable cable routing. Wall supports provide secure, space-efficient mounting to walls or structures, ensuring strong, stable cable pathways while simplifying installation with compatible hardware and adaptable configurations.
Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.
Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Patented FAS Locking Tabs: Secure wire mesh cable tray to the bracket without separate nuts, bolts or tray clamps, helping reduce installation time and hardware.
- Wall and Underfloor Support: Functions as a wall bracket or combines with a UFC Clamp or EDF Rail to support wire mesh cable tray beneath raised floors.
- Matched to Tray Width: Available in multiple lengths designed to coordinate with the width of the wire mesh cable tray for properly sized pathway support.
- Up to 292-Pound Safe Working Load: Available bracket sizes provide safe working loads ranging from 112 to 292 pounds to accommodate different tray widths and cable loads.
- Multiple Material and Finish Options: Available in pregalvanized, black, white and custom-painted carbon steel, as well as 316L stainless steel for demanding installation environments.
Specifications
General Info
| Type | Supports | ||
| Application Sector | Data Center | ||
| Product Line | Cablofil |
Additional Information
| Product Environmental Profile | Yes |
Additional Information
Cablofil Product Code
Our part numbers make it easy to identify part type, size and finish. Please use this chart to identify your part numbers when ordering or specifying any Cablofil product.
Resources
Installation Instructions
Supporting Document
Catalog
Product Environmental Profile
White Papers & Tech Bulletins
