Wire Mesh Wall Mount Attachment

C 50 Cablofil

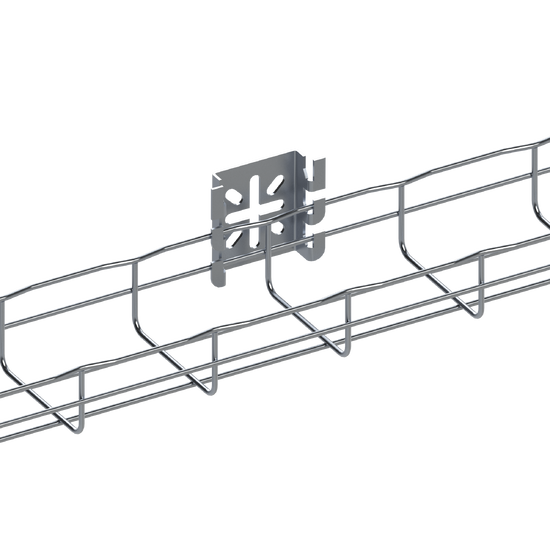

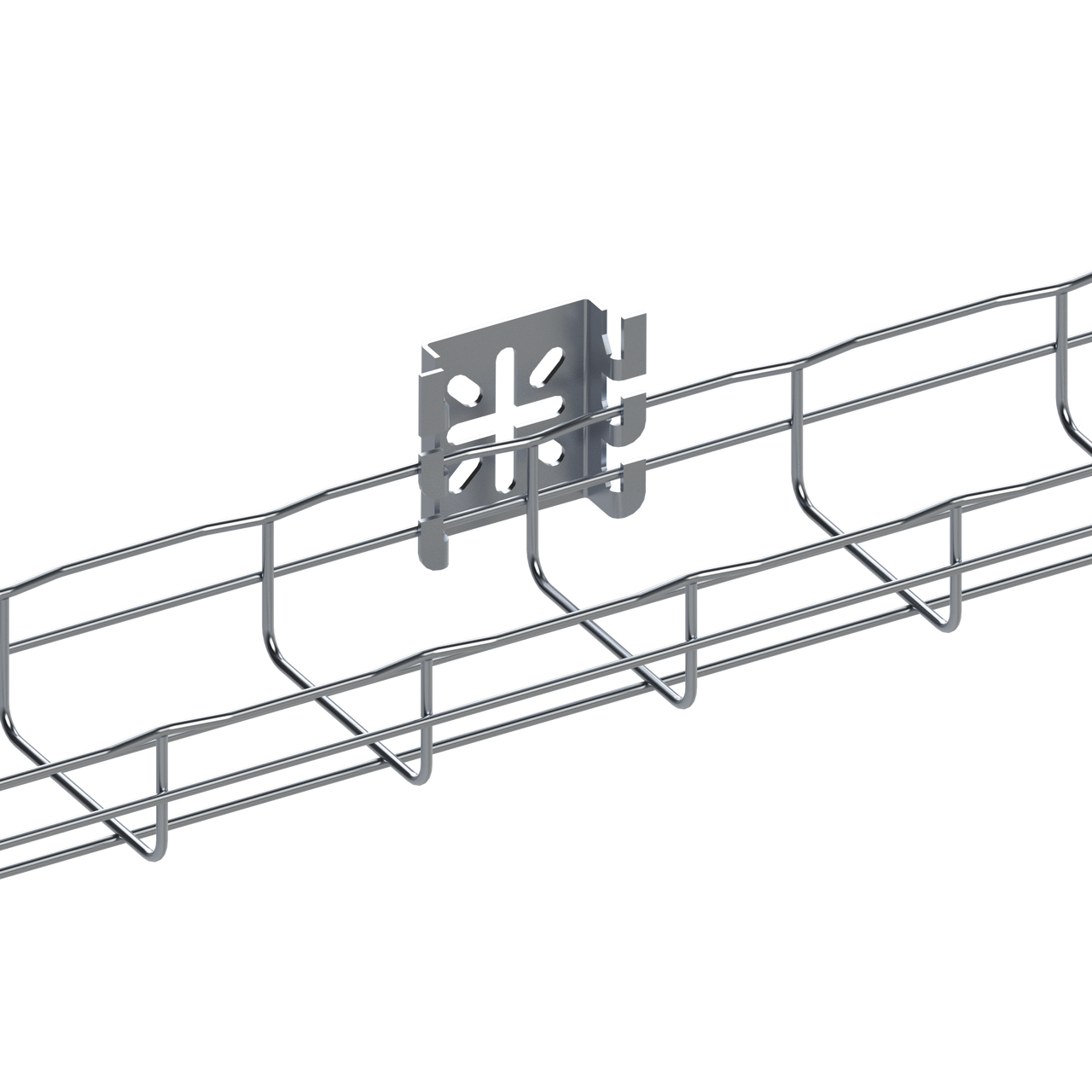

This wall mount attaches trays to surfaces, delivering secure support with quick, tool-free installation. Wall supports provide secure, space-efficient mounting to walls or structures, ensuring strong, stable cable pathways while simplifying installation with compatible hardware and adaptable configurations.

Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.

View All Wire Mesh Wall Supports

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

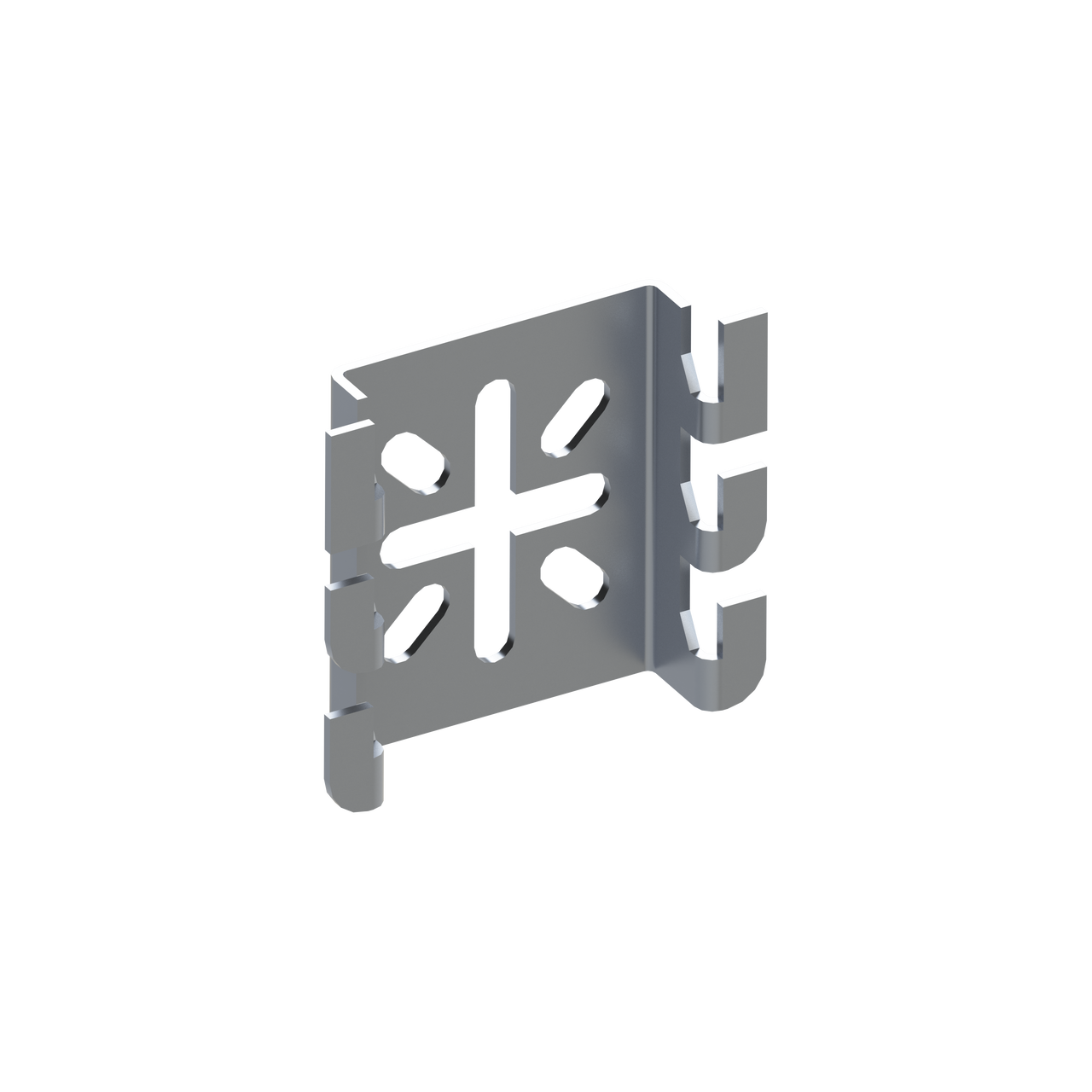

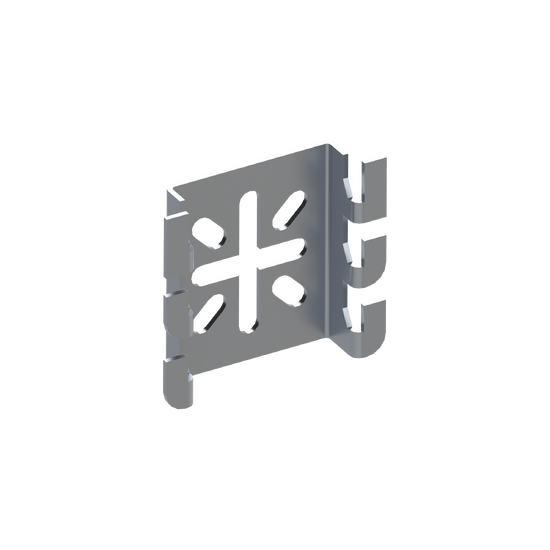

Supports Trays Up to 4 Inches Wide: Attaches compact wire mesh cable tray runs directly to walls, cabinets or machinery for localized cable routing.
Hardware-Free Tray Attachment: Integrated fold-over tabs secure the tray to the support without separate nuts, bolts or clamps.
Adjustable Wall Mounting: Slotted mounting holes provide flexibility for positioning and help accommodate minor alignment variations during installation.
Compact Support Profile: Measures approximately 3.35 inches wide, 2.95 inches high and 0.79 inch deep for space-efficient mounting.
Multiple Material Options: Available in pregalvanized carbon steel and passivated 316 stainless steel for commercial and industrial installation environments.
