Wire Mesh Universal Dropout

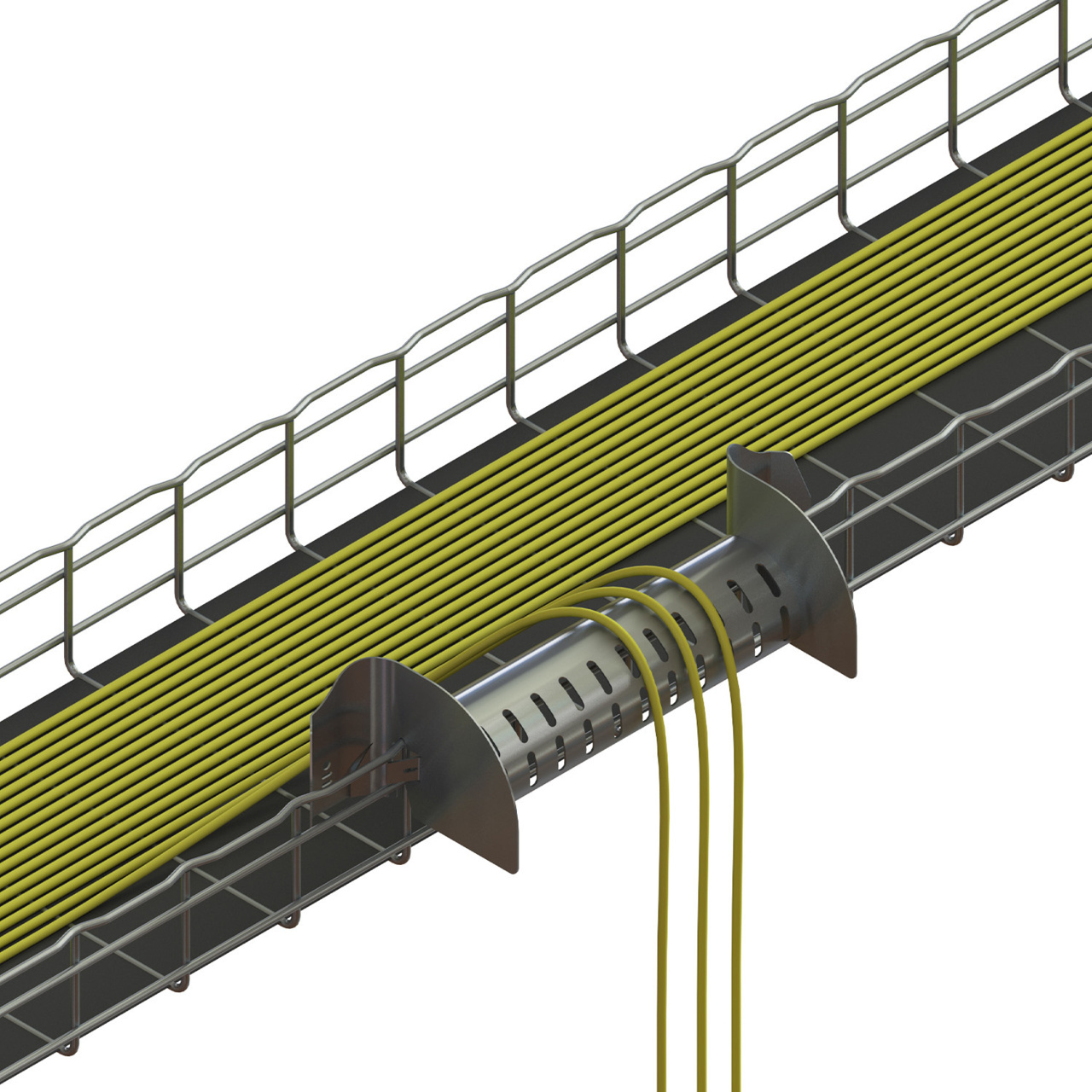

This universal hang-on dropout routes cables cleanly while keeping them in tray, supporting smooth exits without tray modification.
Integrated wire mesh tray dropouts create smooth cable exit points, protecting cable jackets, maintaining proper bend radius, and ensuring quick, secure installation with easy-to-attach hardware.
Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.
Integrated wire mesh tray dropouts create smooth cable exit points, protecting cable jackets, maintaining proper bend radius, and ensuring quick, secure installation with easy-to-attach hardware.
Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- 120-Degree Cable Transition: Creates a smooth, gradual bend that helps prevent pinch points, kinks and excessive stress as cables exit the tray.
- High-Capacity Cable Support: Provides strong, continuous support for large bundles of copper, fiber optic and PoE cabling without compromising the strength of the wire mesh tray.
- 8- to 24-Inch Width Options: Available in 8-, 12-, 18- and 24-inch sizes to accommodate a range of cable bundle capacities and pathway requirements.
- Direct Edge Installation: Integrated mounting slots attach the dropout directly to the edge of the tray, simplifying installation and supporting future moves, additions and changes.
- Multiple Finishes and Accessories: Available in electrozinc, black, white and custom colors, with optional accessories for directing and securing cables as they leave the dropout.
Specifications
General Info
| Type | Dropouts | ||
| Application Sector | Data Center | ||
| Product Line | Cablofil |
Additional Information
| Product Environmental Profile | Yes |
Additional Information
Cablofil Product Code
Our part numbers make it easy to identify part type, size and finish. Please use this chart to identify your part numbers when ordering or specifying any Cablofil product.
